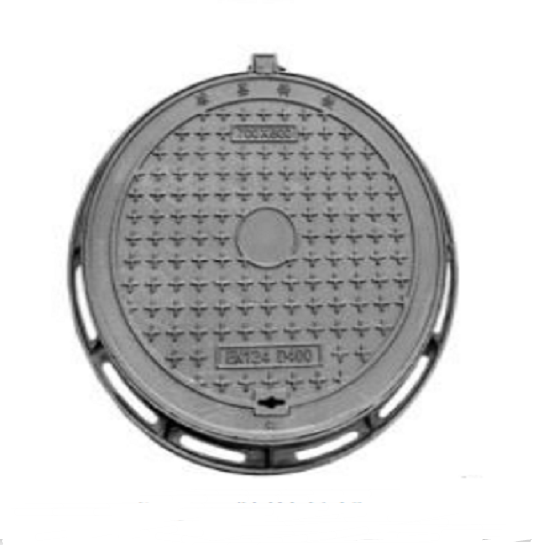

Manhole covers ductile cast iron manhole covers lid cover D400 round EN124 sewer drain lid

Manhole covers ductile cast iron manhole covers lid cover D400 round EN124 sewer drain lid

Model Number:AJCI-MHR-024
Size:700*800mm, see detailed sketch
Cover Size:700
Frame Size:800
Height:75
Clear Opening:660
Weight:42kgs
Load:D400
Standard:EN124

Product Description

Our extensive stock of ductile iron manhole covers and frames are available at a wide range of sizes and load ratings.

Whether you’re looking for a cast iron inspection / access cover for your project or a drain cover, contact us for exclusive trade prices.

Load : D400

Specifications:700×800

D / Cover size:700

F / Frame size:800

H /Height:75

h / Embedding depth:30

O / Clear opening:660

Casting weight Frame / cover:13kg/28Kg

Locking device  Hinge: √

It is important to consider the strength requirement when purchasing a manhole cover. All of our manhole covers conform to BS EN 124:2015 British standards classes, and should be considered when purchasing a manhole cover for a particular application. These classes are as follows:

A15: capable of withstanding a 15kN load (1.5 tonnes). Pedestrian areas only.

B125: capable of withstanding a 125kN load (12.5 tonnes). Car parks and pedestrian areas with very light traffic use.

C250: capable of withstanding a 250kN load (25 tonnes). Car parks and industrial sites with slow moving traffic.

D400: capable of withstanding a 400kN load (40 tonnes). Carriageways and hard shoulders.

E600: capable of withstanding a 600kN load (60 tonnes). Loading areas, docks or aircraft pavements.

F900: capable of withstanding a 900kN load (90 tonnes). High wheel loads, such as aircraft pavements.

Manhole covers ductile cast iron manhole covers lid cover D400 round EN124 sewer drain lid
