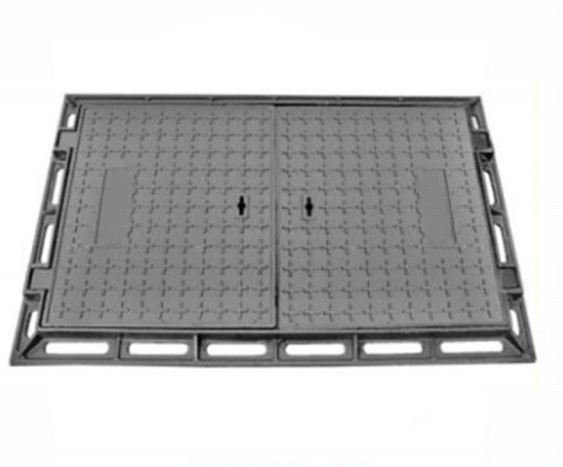

Ductile double seal rectangle cast iron manhole cover EN124 D400 Access cover

Ductile double seal rectangle cast iron manhole cover EN124 D400 Access cover

Model Number:AJCI-MHS-073
Size:550*1030mm, see detailed sketch
Color:Customized Color
Standard:EN124 Standard
Shape:Rectangle
Load:B125

Product Description

Ductile iron castings have been used in almost all major industrial sectors, requiring high strength, ductility, toughness, wear resistance, resistance to severe thermal and mechanical shocks, high or low temperatures, corrosion resistance and dimensional stability.

In order to meet these variations in the conditions of use, there are many grades of ductile iron available, providing a wide range of mechanical properties and kinematic properties. Most ductile iron castings, as defined by ISO 1083, are mainly produced in non-alloyed state.

Obviously, this range includes high-strength grades with tensile strength greater than 800 Newtons/mm and elongation of 2%. QT500-7, a general-purpose material for ductile iron manhole covers, has a Brinell hardness of 170-230HB.

 The other extreme is a high-resistance grade with an elongation of more than 17% and a correspondingly low strength (minimum of 370 N/mm scoop. Strength and elongation are not the only roots of the designer’s choice of material, while other decisive important properties Also included are yield strength, modulus of elasticity, wear and fatigue strength, hardness and impact properties. In addition, corrosion resistance and oxidation resistance and electromagnetic properties may be critical to the designer.

To meet these special uses, a group has been developed. Austenitic ductile iron, usually called Ni-Resis, is a ductile iron. These austenitic ductile irons are mainly alloyed with zinc, chromium and manganese and are listed as international standards.

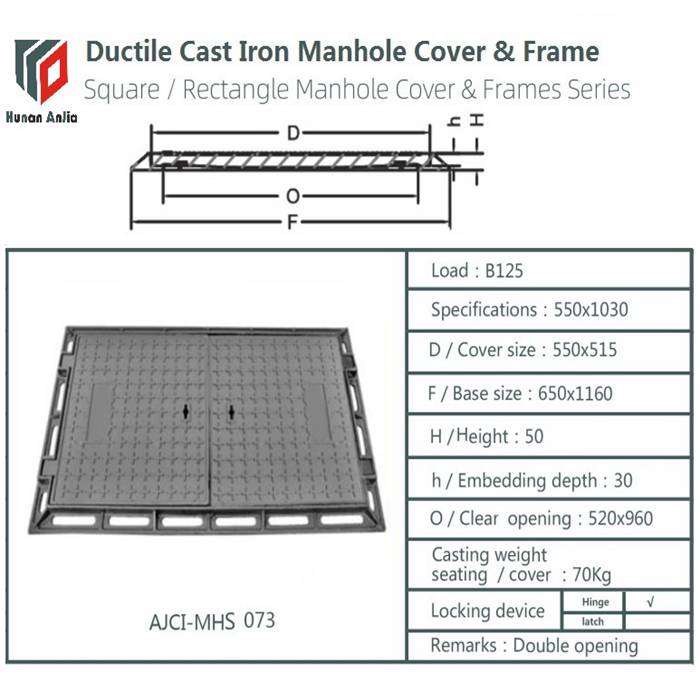

Load : B125

Specifications: 550X1030

D / Cover size:500X515

F / Frame size: 650X1160

H /Height:50

h / Embedding depth:30

O / Clear opening: 520X960

Casting weight Frame / cover: 70kg/47Kg

Locking device  Hinge: √

Remarks: Double opening

Ductile double seal rectangle cast iron manhole cover EN124 D400 Access cover
