Product Description

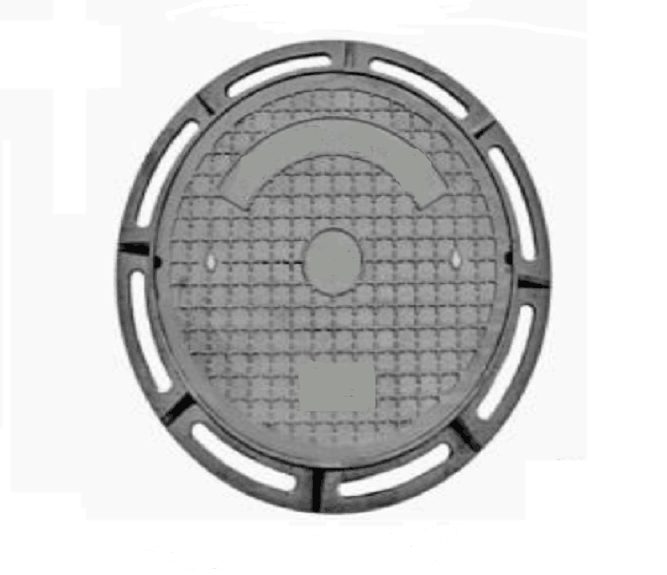

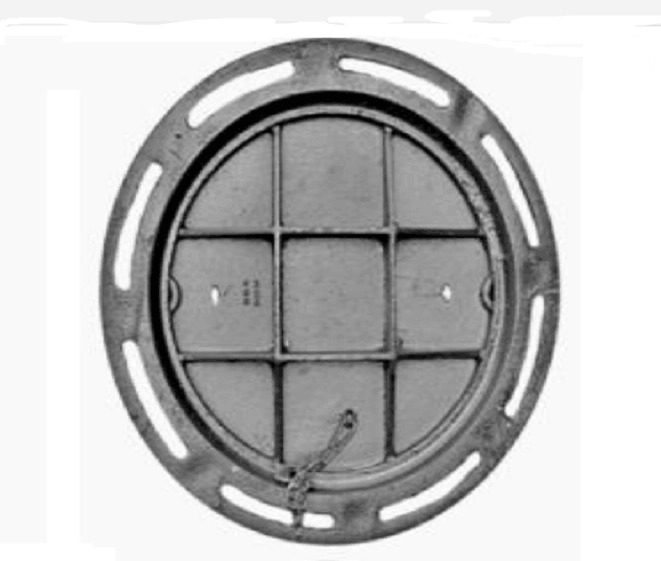

Our extensive stock of ductile iron manhole covers and frames are available at a wide range of sizes and load ratings.
Whether you’re looking for a cast iron inspection / access cover for your project or a drain cover, contact us for exclusive trade prices.
Load : D400
Specifications: 700X960
D / Cover size:700
F / Frame size:960
H /Height:105
h / Embedding depth:30
O / Clear opening:705
Casting weight Frame / cover:98.5kg
Locking device Hinge: √
Rubber strip: √
It is important to consider the strength requirement when purchasing a manhole cover. All of our manhole covers conform to BS EN 124:2015 British standards classes, and should be considered when purchasing a manhole cover for a particular application. These classes are as follows:
A15: capable of withstanding a 15kN load (1.5 tonnes). Pedestrian areas only.
B125: capable of withstanding a 125kN load (12.5 tonnes). Car parks and pedestrian areas with very light traffic use.
C250: capable of withstanding a 250kN load (25 tonnes). Car parks and industrial sites with slow moving traffic.
D400: capable of withstanding a 400kN load (40 tonnes). Carriageways and hard shoulders.
E600: capable of withstanding a 600kN load (60 tonnes). Loading areas, docks or aircraft pavements.
F900: capable of withstanding a 900kN load (90 tonnes). High wheel loads, such as aircraft pavements.
