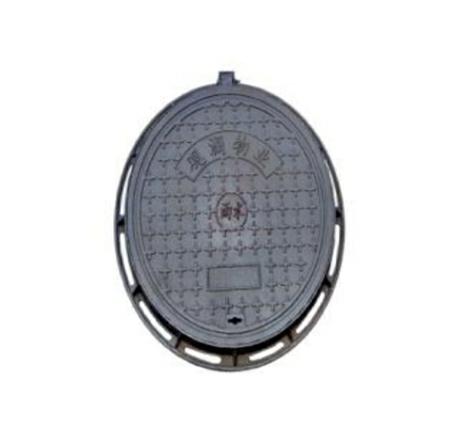

C250 EN124 ductile cast iron manhole covers round shape sewer cover

C250 EN124 ductile cast iron manhole covers round shape sewer cover

Model Number:AJCI-MHR-014
Size:700*800mm, see detailed sketch
Color:Customized Color
Shape:Round
Standard:EN124
Load:C250
Specification:700*800
Height:75

Product Description

Our extensive stock of ductile iron manhole covers and frames are available at a wide range of sizes and load ratings.

Whether you’re looking for a cast iron inspection / access cover for your project or a drain cover, contact us for exclusive trade prices.

Load : C250

Specifications: 700X800

D / Cover size:700

F / Frame size: 800

H /Height:75

h / Embedding depth:30

O / Clear opening:670

Casting weight Frame / cover:40kg

It is important to consider the strength requirement when purchasing a manhole cover. All of our manhole covers conform to BS EN 124:2015 British standards classes, and should be considered when purchasing a manhole cover for a particular application. These classes are as follows:

A15: capable of withstanding a 15kN load (1.5 tonnes). Pedestrian areas only.

B125: capable of withstanding a 125kN load (12.5 tonnes). Car parks and pedestrian areas with very light traffic use.

C250: capable of withstanding a 250kN load (25 tonnes). Car parks and industrial sites with slow moving traffic.

D400: capable of withstanding a 400kN load (40 tonnes). Carriageways and hard shoulders.

C250 EN124 ductile cast iron manhole covers round shape sewer cover
