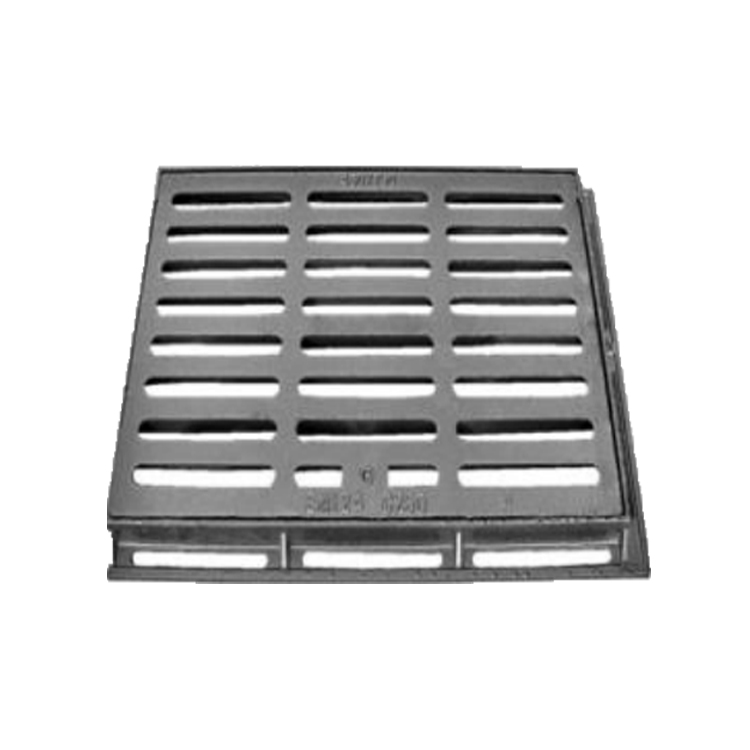

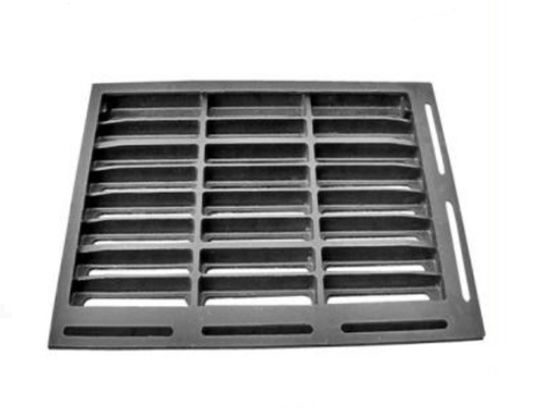

B125 Ductile iron gully grating EN124 rainwater grate Grid-Plate

B125 Ductile iron gully grating EN124 rainwater grate Grid-Plate

Place of Origin:China
Brand Name:Anjoy
Model Number:AJCI-GG 055
Size:450*750mm, see detailed sketch

Product Description

Our extensive stock of ductile iron manhole covers and frames are available at a wide range of sizes and load ratings.

Whether you’re looking for a cast iron inspection / access cover for your project or a drain cover, contact us for exclusive trade prices.



Load : C250

Specifications: 450X750

D / Cover size:450X750

H /Height:48

h / Embedding depth:40

O / Clear opening:450X715

Casting weight Frame / cover: 11kg/24Kg

Locking device  Hinge: Chain pin



It is important to consider the strength requirement when purchasing a manhole cover. All of our manhole covers conform to BS EN 124:2015 British standards classes, and should be considered when purchasing a manhole cover for a particular application. These classes are as follows:

A15: capable of withstanding a 15kN load (1.5 tonnes). Pedestrian areas only.

B125: capable of withstanding a 125kN load (12.5 tonnes). Car parks and pedestrian areas with very light traffic use.

C250: capable of withstanding a 250kN load (25 tonnes). Car parks and industrial sites with slow moving traffic.

D400: capable of withstanding a 400kN load (40 tonnes). Carriageways and hard shoulders.
